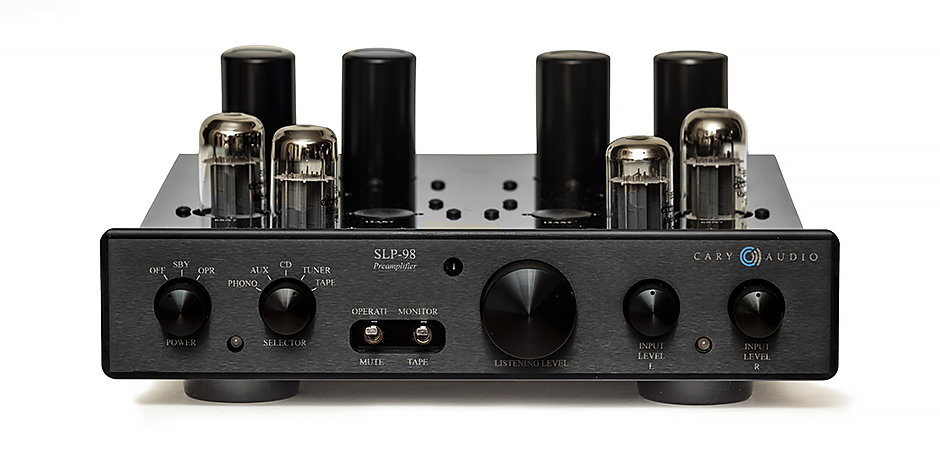

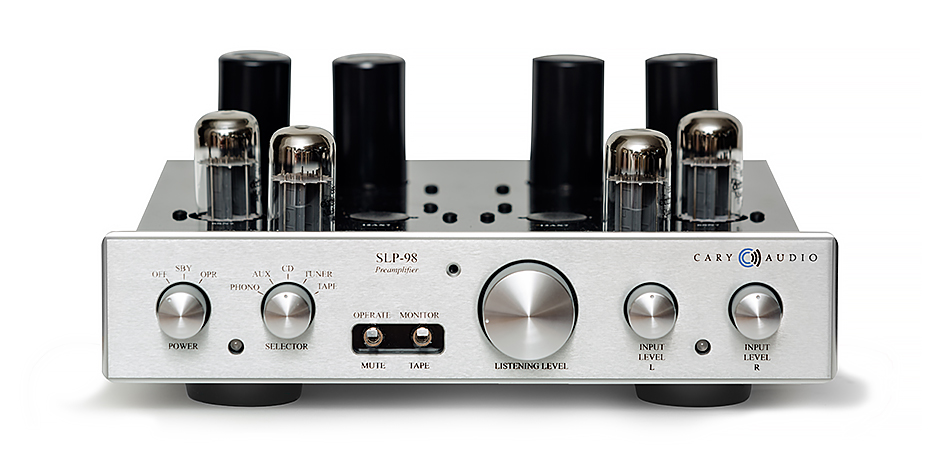

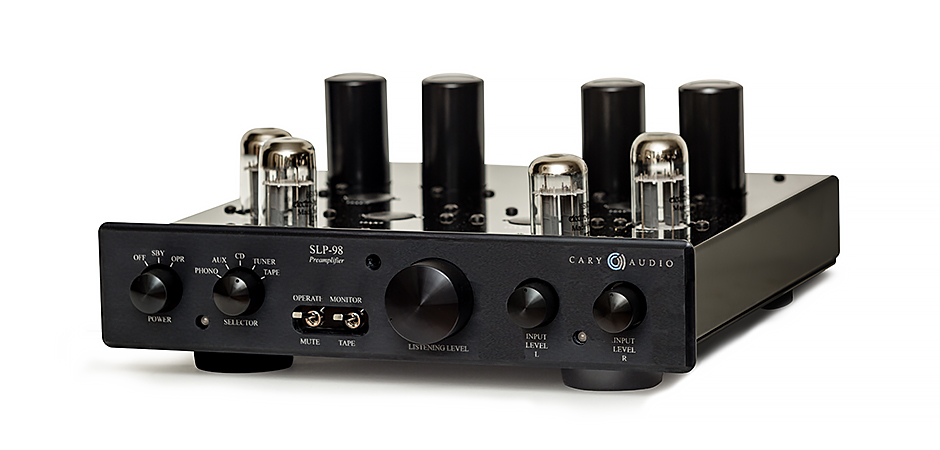

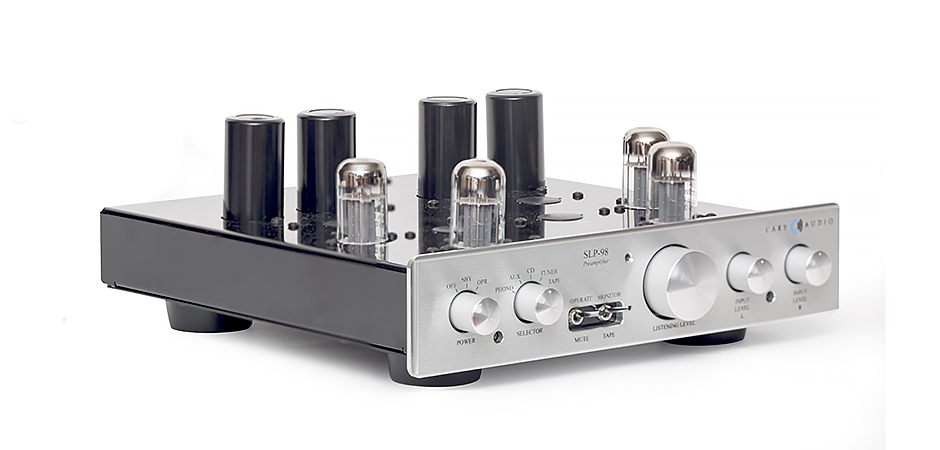

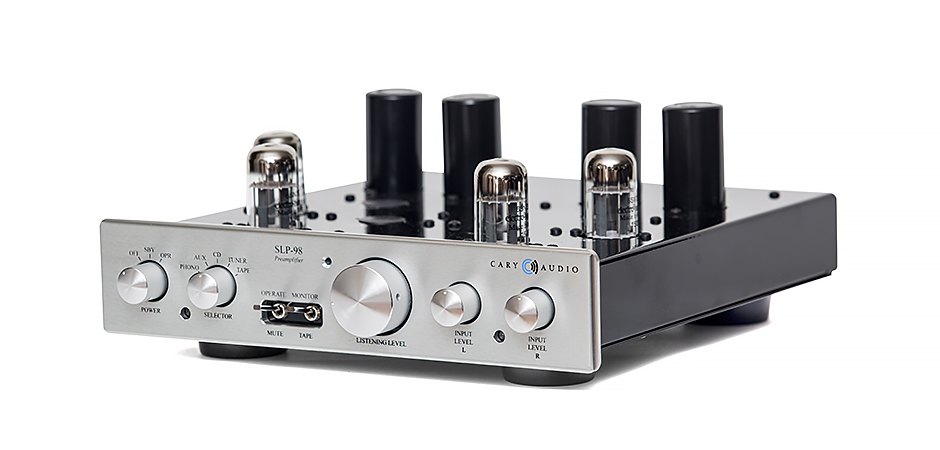

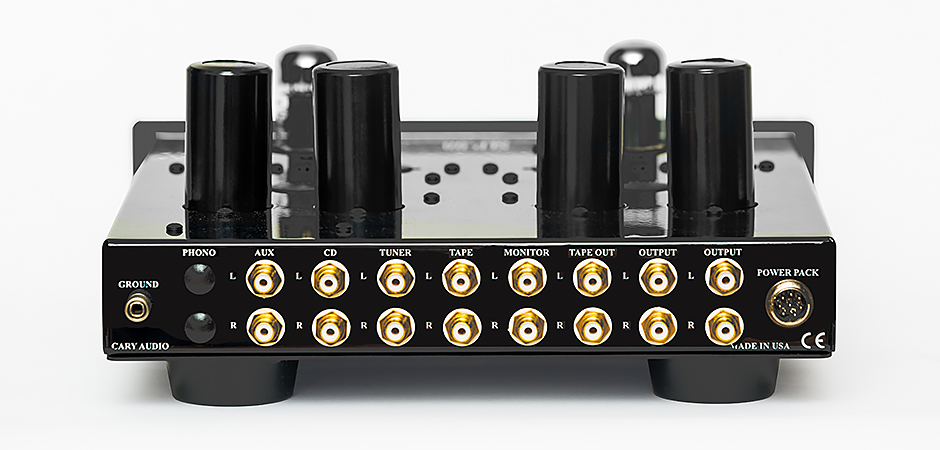

About the SLP-98 Preamplifier

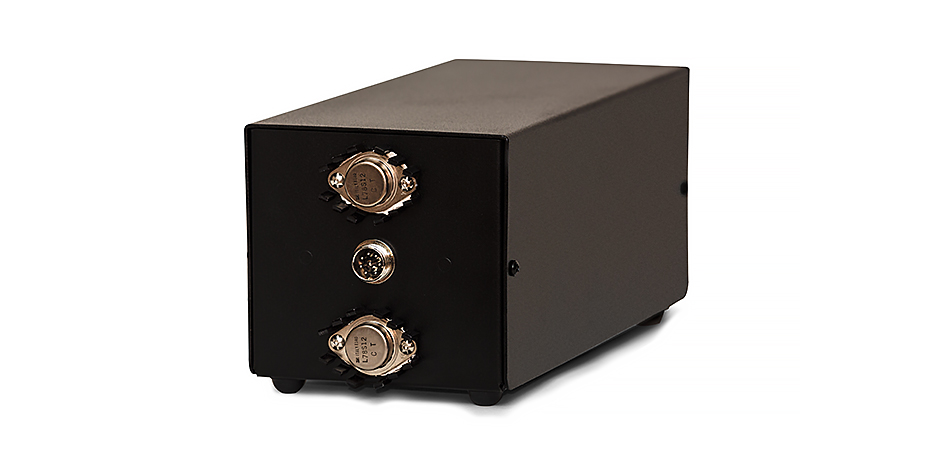

Full feature, hand wired, vacuum tube preamplifier featuring (4) 6SN7, (2) 12AX7, and (2) 12AU7 tubes. MM phono amplifier section built in. Large heavy duty external power supply. Standard with remote volume. Jaguar Carnival Red chassis with clear coat finish. ZERO feedback design. SLP-98L has the same specification as above, but with line stage only.
| Circuit Type | Class A Triode |
| Output | Rated 2 volts, 12 volts maximum |
| Gain | 20dB – Line Stage 43 dB – Phono Stage (SLP 98P only) |
| Noise and Hum | -88 dB below full output |
| Input Impedance | 50,000 Ohms – Line 47,000 Ohms – Phono |
| Output Impedance | 440 Ohms |
| Frequency Response | 5 Hz to 163,000 Hz |
| Tubes | 4 ea – 6SN7 Line Stage 2 ea – 12AX7 Phono Stage 2 ea – 12AU7 Phono buffer |
| Power Transformer(s) | EI Laminate, 200% Duty Cycle |
| Resistors | 1% Metal Film |
| Capacitors | Polystyrene, Film and Foil (Optional Oil-Filled) |
| Power Supply Capacitors | 4 ea – 560µF @ 400 VDC |
| AC Cord | 3 Conductor, Detachable |
| AC Power Requirements | 117/234 VAC @ 50/60 Hz |
| Consumption | 44 watts – Operation |
| Warm-Up Time | 3 Minutes |
| Break-In Time | 100 hours of playing time |
| Finish | Black Anodized Aluminum Faceplate Jaguar® Carnival Red steel chassis with high gloss clear coat finish |
| Weight | 22 lbs |
| Dimensions | 5″ H x 12.5″ W x 12″ D |
