About the DMC-600SE Digital Music Center

The DMC-600SE Digital Music Center combines the past with the future and is designed for traditionalists as well as new-age music lovers. Now, one can continue to enjoy their extensive CD collection while exploring the virtues of high resolution and super high resolution Asynchronous USB computer audio. The DMC-600SE supports PCM up to 32 bit/ 384 kHz native audio as well as native DSD 64, 128, and 256 audio. Additionally, the DMC-600SE includes; CSR aptX® lossless Bluetooth, SPDIF coaxial and Toslink inputs, AES/EBU inputs and both fully balanced XLR and RCA outputs. To further enhance your listening enjoyment, The DMC-600SE also includes our TruBit™ Upsampling technology and our DiO™ vacuum tube and solid state analog outputs, as well as many other benchmark features.

Differentiating it from the DMC-600, the DMC-600SE utilizes super premium reference grade components within the analog output sections for further performance enhancements as well as a clock input for use with an external master clock for recording studios and professional or semi-professional use.

The following section describes the DMC-600SE basic specifications. The specifications are subject to change without notice or obligation.

CD Mechanism Triple-beam laser, multi-speed CD transport
Formats CD AUDIO (CD-DA), CD-R, CD-RW
Master Clock Jitter Below measurable levels
Digital Sampling Rates (Fs) 44.1kHz to 768kHz
Digital Filter 8x Oversampling Digital Filter
Digital/Analog Converters (1) 4 channel AK4495EQ and (2) 2 channel AK4490EQ for true balanced and single ended outputs
BLUETOOTH CSR bluetooth v 4.0 with aptX low latency audio decoder
Analog Filter 3rd Order Bessel

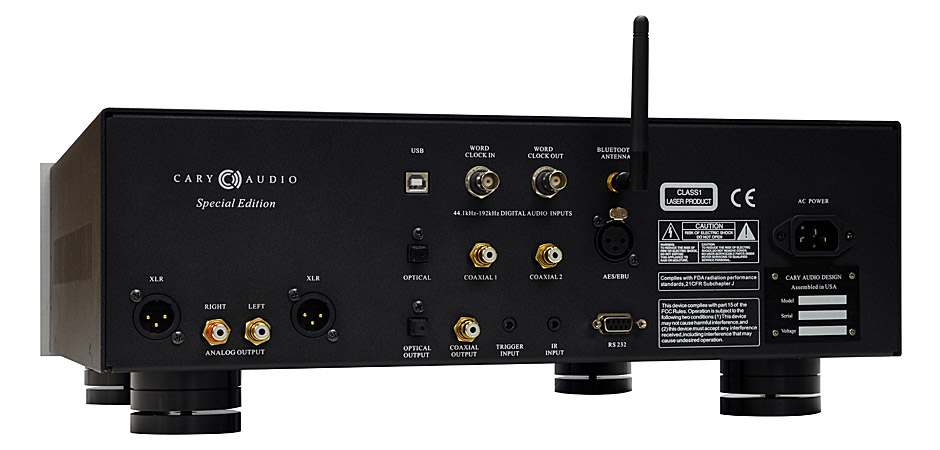

Analog Outputs Balanced XLR , Single – Ended RCA
Digital Outputs Coaxial, Toslink operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit
Digital Inputs USB x 1 (PC & MAC)
BLUETOOTH x1
AES/EBU x1, Coaxial x2, Toslink x1
Master Clock Loop x1
Digital Input Sample Rate USB: operating Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, DSD 128 and DSD 256
BLUETOOTH: Sample Frequency (Fs) 44.1 kHz, 16 bit
AES/EBU, Coaxial, Toslink: operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit
Tube Compliment 12au7 x 2
Control Trigger input 12VDC x1
IR control x1
Communication RS232 full remote configuration interface
Power Input Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
Power Consumption 86 Watts
Finish Silver Anodized Aluminum Faceplate, Jaguar Anthracite Black steel chassis
Weight 35 lbs
Dimensions 5.25″ H x 17.25″ W x 16.25 ” D

AUDIO (CD)

Frequency Range 2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity 0.1 dB (20 Hz – 20 kHz)
Phase Linearity 3 degrees (20 Hz – 20 kHz)
Dynamic Range 121 dB (1 kHz)
Signal to Noise Ratio 113 dB (1 kHz)
Channel Separation 106 dB (1 kHz)
Total Harmonic Distortion 0.0004% (1 kHz)
Audio Output Level 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB
3.0V RMS (220 Ω output impedance) for Volume in +8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB

PC-USB Playback (PCM & DSD)

Frequency Range 2 Hz – 100 kHz
Signal System 16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency 44.1 kHz to 384 kHz PCM and 2.822MHz – 11.288 MHz DSD
Dynamic Range 123 dB
DSD System Clock Frequency 22.5792 MHz
Signal to Noise Ratio 112 dB
Audio Output Level 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB
3.0V RMS (220 Ω output impedance) for Volume in+8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (PCM)

Frequency Range 2 Hz – 100 kHz
Signal System 16, 20, and 24 bit
Sampling Frequency 44.1 kHz to 192 kHz PCM
Dynamic Range 123 dB
DSD System Clock Frequency 22.5792 MHz or 24.576 MHz
Signal to Noise Ratio 112 dB
Audio Output Level 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB
3.0V RMS (220 Ω output impedance) for Volume in+8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB

Resources

Owner's Manual
Visit Site

IR Remote Codes
Visit Site

RS232 Protocol
Visit Site

Software Information
Visit Site

Software Installation Instructions
Visit Site

HyperTerminal Software Zip File (Required for Software Upgrading)
Visit Site

Latest Software Upgrade Zip File (v1.4)
Visit Site

List of Software Features
Visit Site

Instructions and Downloads for Updating USB Port for Windows 10 Driver
Visit Site

USB Driver (v4.38.0) Zip File: For units already updated to use Driver v3.40, you can now use this latest Driver v4.38.0.
Visit Site

NOTE:
Above is a Windows 10 compatible Driver. If you have not updated the USB port on your unit to use v3.40, then you will need to update the USB port in order to use this Driver. See "Instructions and Downloads for Updating USB Port for Windows 10 Driver" above.

USB Driver (v3.34) Zip File
Visit Site

NOTE:
We recommend updating Software whenever a new Windows Driver update is done.
